Native components

On iOS, native components avoid the hinge automatically. In this example, when in Book posture, iOS moves the bottom sheet to the left half.

react-native-arrangement-view only places the ArrangementView.Primary and ArrangementView.Secondary panes, and whatever is inside them.

On Android, Material's bottom sheet doesn't move when folding. It stays in the middle.

This example opens the bottom sheet from Expo UI over an ArrangementView. The full example is in the example app.

Rendering the native component

Render a native component anywhere in the screen (outside the ArrangementView). In this example, we're using BottomSheet from Expo UI, but you can use any native component.

import { useState } from 'react';
import { BottomSheet, Button, Column, Spacer, Text } from '@expo/ui';
import { ArrangementView } from 'react-native-arrangement-view';

export function NativeComponents() {
  const [sheetShown, setSheetShown] = useState(false);

  return (
    <>
      <ArrangementView style={{ flex: 1 }}>
        <ArrangementView.Primary>
          <FirstPane onOpenSheet={() => setSheetShown(true)} />
        </ArrangementView.Primary>
        <ArrangementView.Secondary>
          <SecondPane />
        </ArrangementView.Secondary>
      </ArrangementView>

      <BottomSheet
        isPresented={sheetShown}
        onDismiss={() => setSheetShown(false)}
        snapPoints={['half', 'full']}
      >
        <Column spacing={12}>
          <Text>A native sheet</Text>
          <Button label="Close" onPress={() => setSheetShown(false)} />
          <Spacer flexible />
        </Column>
      </BottomSheet>
    </>
  );
}

Screenshots

Posture	iOS	Android

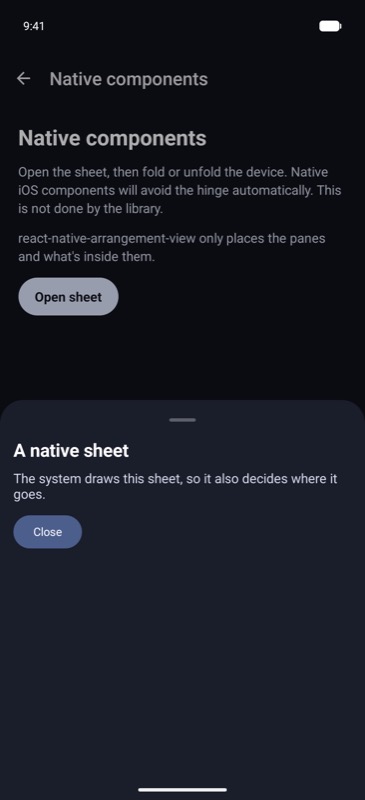

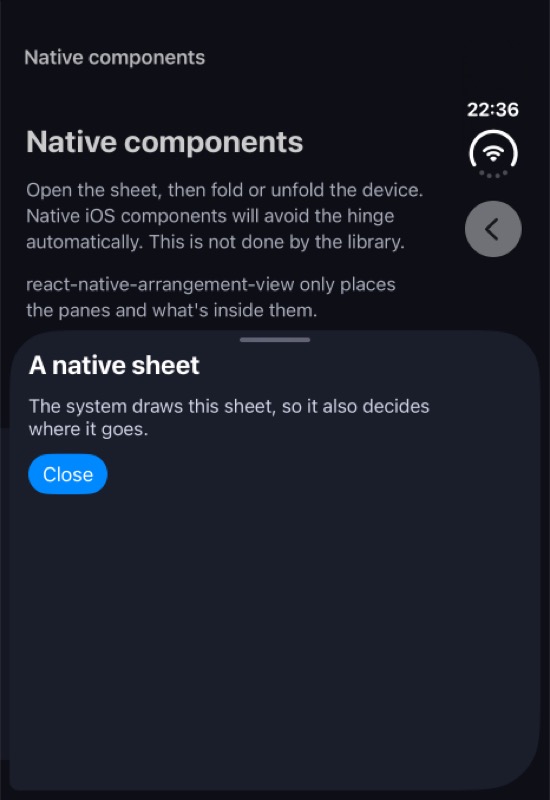

Closed	The sheet covers the bottom of the screen	The same

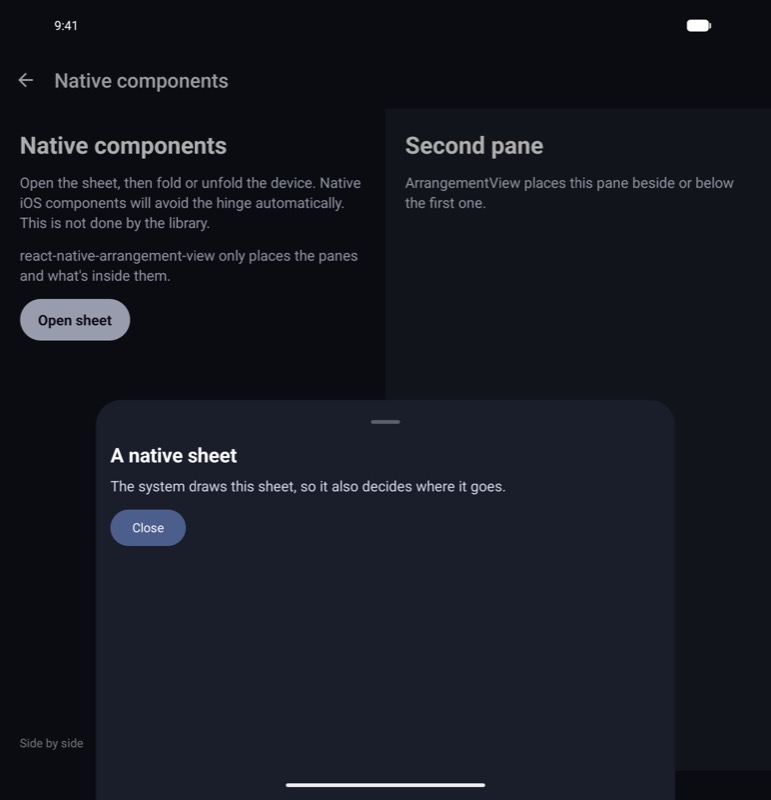

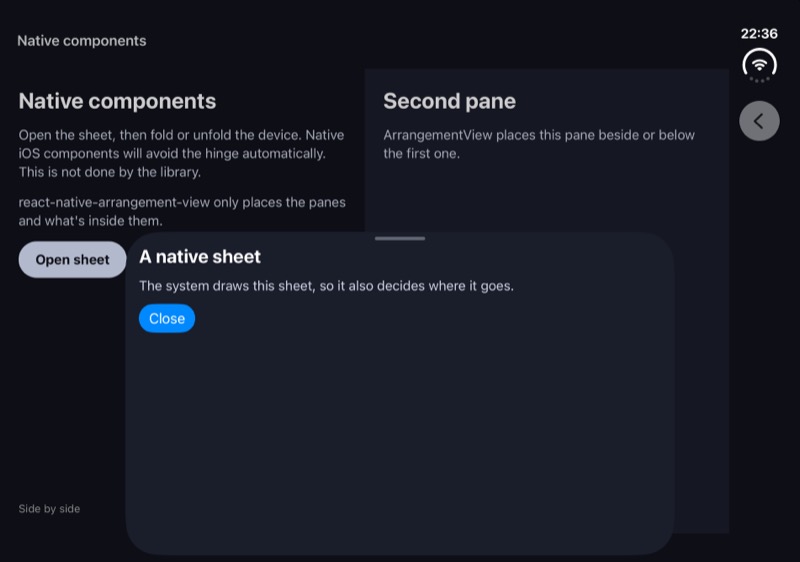

Open flat	The sheet sits in the middle, over both panes	The same

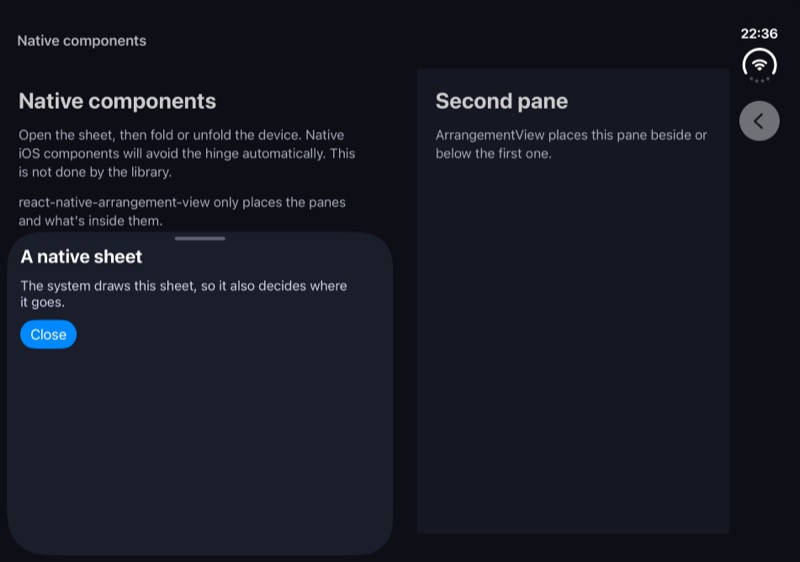

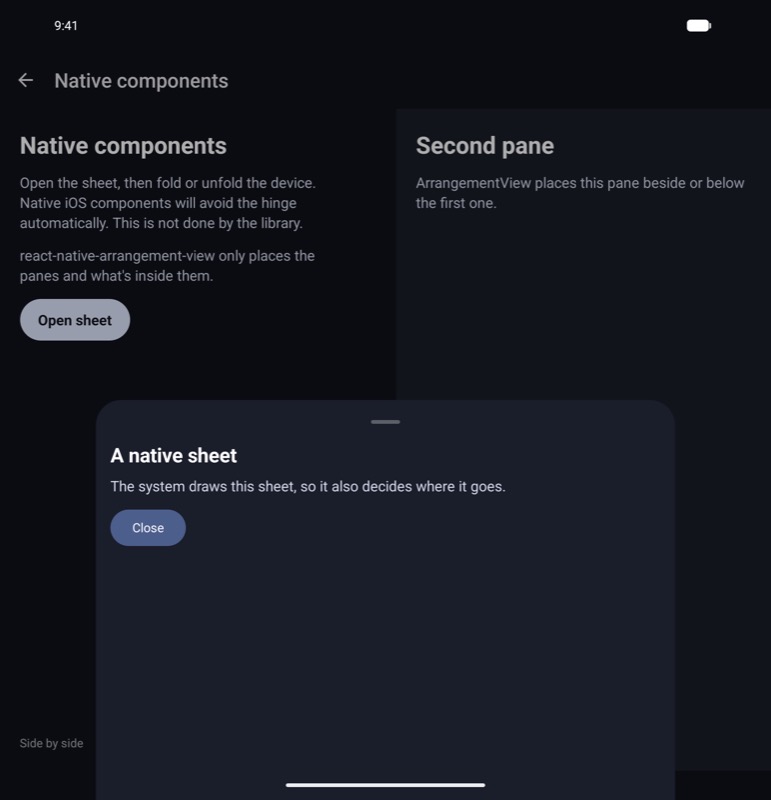

Book	The sheet moves to the left half, away from the fold	The sheet stays in the middle, on the fold

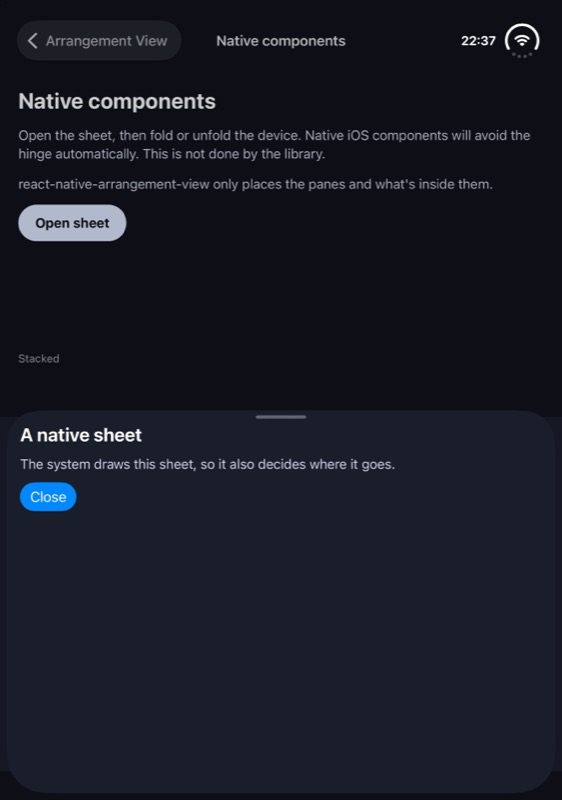

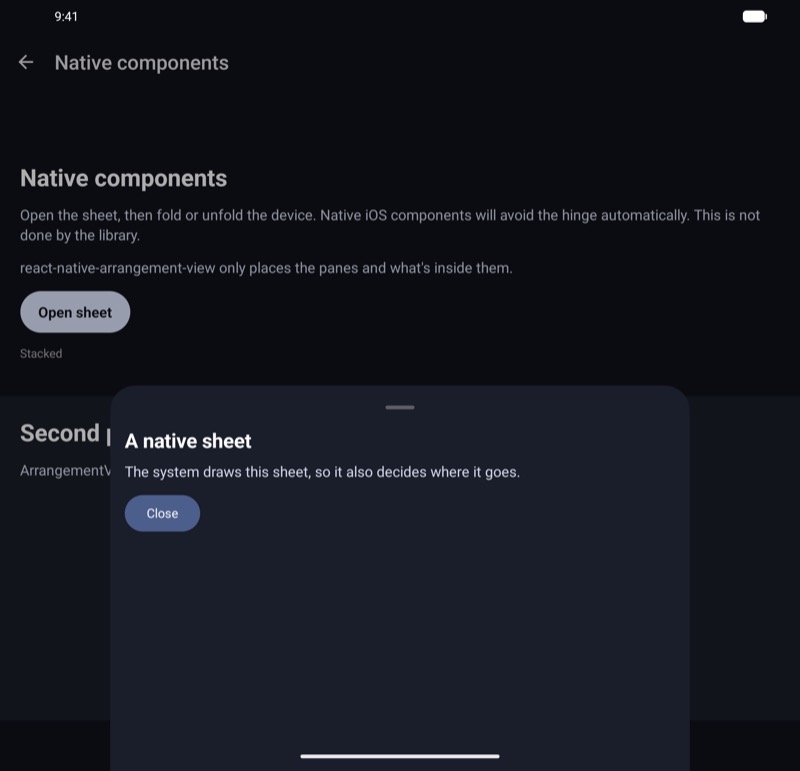

Tabletop	The sheet covers the bottom half	The same
